Features
The ice cream sugar cone production line has the characteristics of large production capacity, simple operation and high production efficiency. It is widely used in the production of various specifications of crispy sugar cones.
Whether it is a small-sized cone or a large-sized ice cream cone, our production line can make it. If there is a special one, a customized mold is required. It is suitable for various ice cream businesses, one hour can make 3000-7500 pieces of ice cream cones.
Application of Cone Production Line
Working Video of Ice Cream Sugar Cone Production Line
Whether it is a small-sized cone or a large-sized ice cream cone, our production line can make it. If there is a special one, a customized mold is required. It is suitable for various ice cream businesses, one hour can make 3000-7500 pieces of ice cream cones.
Application of Cone Production Line

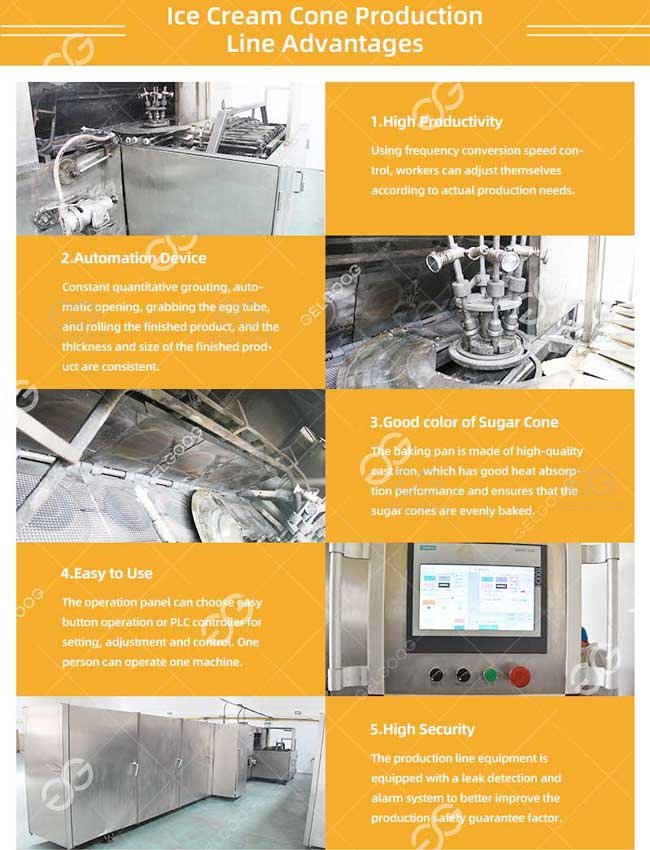

Features of Industrial Sugar Cone Production Line
1. Large production capacity, there are different output to choose from, the output range is 3000-7500.
2. There are two heating methods for this production line, electric heating and gas heating.
3. High degree of automation, no manual operation is required during processing.
4. All stainless steel production can prevent corrosion and rust, and the food is more hygienic.
4. All stainless steel production can prevent corrosion and rust, and the food is more hygienic.

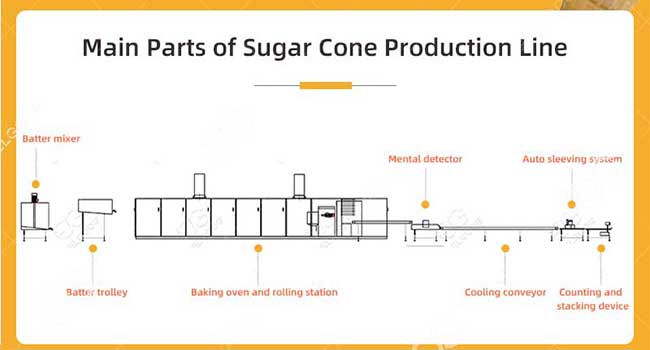

5. Supporting equipment includes beating machine, cooling conveyor belt, paper machine, counting machine and so on.
Working Video of Ice Cream Sugar Cone Production Line
Technical Data
| Model | GGDCL-37 | GGDCL-45 | GGDCL-55 | GGDCL-65 | GGDCL-75 | ||
| Capacity | 3000-3500pcs/h | 3500-4000pcs/h | 4500-5000pcs/h | 5500-6250pcs/h | 7000-7500pcs/h | ||
| Power | 2.2KW, 380V 50Hz 3phase | 3KW, 380V 50Hz 3phase | |||||
| Gas consumption | 140cube/24hours | 160cube/24hours | 200cube/24hours | 240cube/24hours | 280cube/24hours | ||
| Dimension | 6.5*1.8*1.75m | 8*1.85*1.8m | 9*1.9*1.85m | 10*1.9*1.85m | 11*1.9*1.85m | ||
| Total weight | 4200kg | 4700kg | 5100kg | 6000kg | 7100kg | ||
