Features

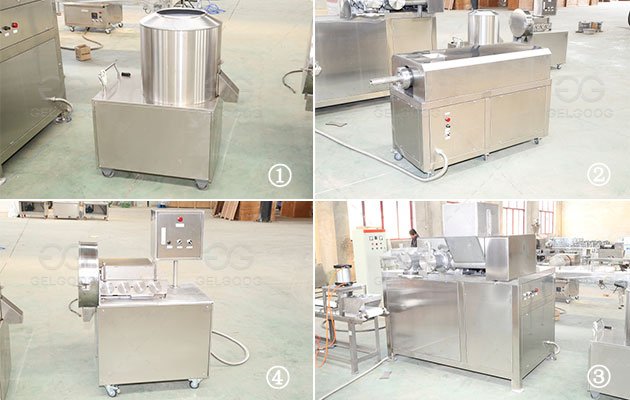

The prawn cracker making machine is composed of mixing machine, extruder, forming machine, cutting machine, slicing machine, etc., which can produce prawn crackers of different sizes(adjustable diameter and thickness). The quality of the machine is good, and the price is favorable.
Characters of Prawn Cracker Making Machine
● There are different production specifications and prices are also different.
● Advanced production technology and high degree of automation.
● The production process has no smoke and dust emission, environmental protection and pollution-free.
● The adjustable speed conveyor adopts food grade PVC conveyor belt, which is clean and hygienic.

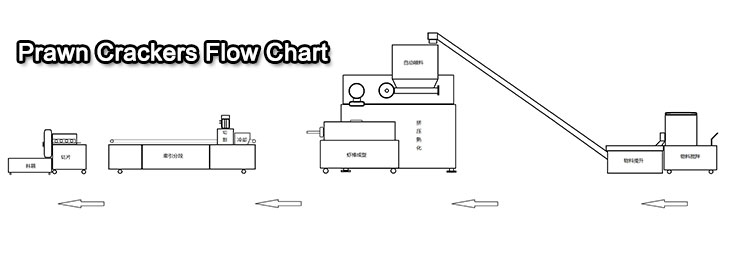

The Processing Flow of Prawn Crackers:
Using potato starch, corn starch, tapioca starch and flour as raw materials, this product are extruded and matured by a single screw extruder, then cut the stick into of the same length, and then sliced into shrimp slices of different thicknesses using a slicer.
Advantages of Automatic Thai Prawn Cracker Making Machine
1. By changing the speed of the mold and cutting knife, shrimp crackers of different diameters and thicknesses can be produced.
2. The production line has the advantages of easy operation, easy maintenance and high production efficiency.
3. Semi-automatic and fully automatic machine can be selected according to actual needs, and a variety of output can be selected.
4. Automatic operation reduces labor intensity, and food-grade materials make shrimp crackers healthier.
Testing Video of Thai Prawn Cracker Machine
4. Automatic operation reduces labor intensity, and food-grade materials make shrimp crackers healthier.
Testing Video of Thai Prawn Cracker Machine
Characters of Prawn Cracker Making Machine
● There are different production specifications and prices are also different.
● Advanced production technology and high degree of automation.
● The production process has no smoke and dust emission, environmental protection and pollution-free.
● The adjustable speed conveyor adopts food grade PVC conveyor belt, which is clean and hygienic.
Technical Data
| Model | GG-6FSJ-400 |
| Mixing Machine |
Power: 7.5KW Capacity: 70kg/time/10min Size: L1350*W1200*H1450mm N.W.: 200kg |
| Elevator |
Power:1.1KW Size: L2050*W810*H2300mm N.W.: 180kg |
| Main Engine |
Power:34KW Cylinder Dia.: 126mm Capacity:300-400kg 380/440V, 3phases, 50/60hz Size: L2200*W1700*H2100mm N.W.: 1200kg |
| Forming Machine |
Power:7.5KW size:L1350*W800*H950mm N.W.: 450kg |
| Cutting Machine |
Power:3KW Cut speed: Adjustable Size:L3550*W740*H1150mm N.W.: 320kg |
| Slice Cutting Machine |
Power:5KW Size: L3650*W1110*H1050mm N.W.: 410kg |
