Custart Tart Freezer Machine
Tart Shell Freezing Machine
<
>

IQF Egg Tart Shell Freezing Machine Manufacturer

  • Brand: GELGOOG
  • Payment Term: T/T, L/C, Money Gram, Western Union
  • Place of Origin: China
  • Trade Term: Exw, FOB, CIF
  • Guarantee Period: 12 Month
Features
The egg tart shell freezing machine is a specialized equipment designed to rapidly freeze egg tart shells. The effect of frozen product is good, and has a extend shelf life.

It is usually used in industrial bakeries and food processing factories where large quantities of custard tart shells need to be prepared efficiently.

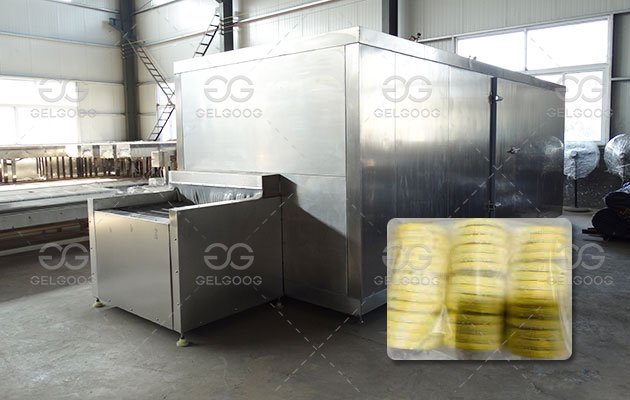

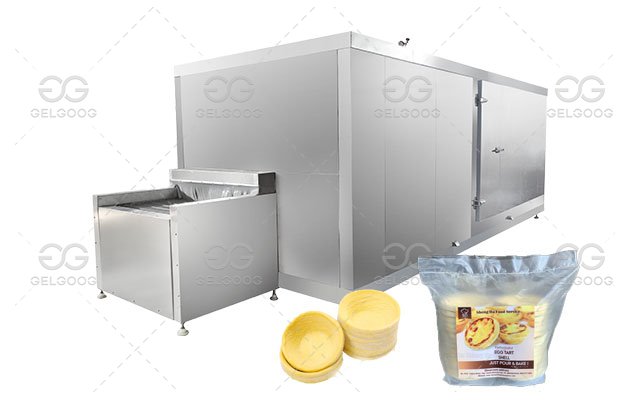

Egg Tart Freezer Machine

Features of Egg Tart Shell Freezer Machine

  • The freezing machine consists of a stainless steel conveyor belt system, frozen tart shells can be frozen directly on the mesh belt. Stainless steel chains on both sides ensure the stability of the transmission system.
  • The freezing chamber is equipped with powerful refrigeration units that generate extremely low temperatures, typically below -18 degrees Celsius. This low temperature allows the egg tart shells to freeze quickly and efficiently.
  • Egg tart shell freezing machine ensures that the egg tart shells freeze evenly and maintain their shape and texture during the process.
  • High-strength, low-deformation engineering plastic door frame, high-pressure foam molding. Frequent switching will not deform, and it will not age after long-term use.
  • This tart shell freezer not only can freeze all kinds of egg tart skins, but also can be used for spring rolls, samosas and other products.

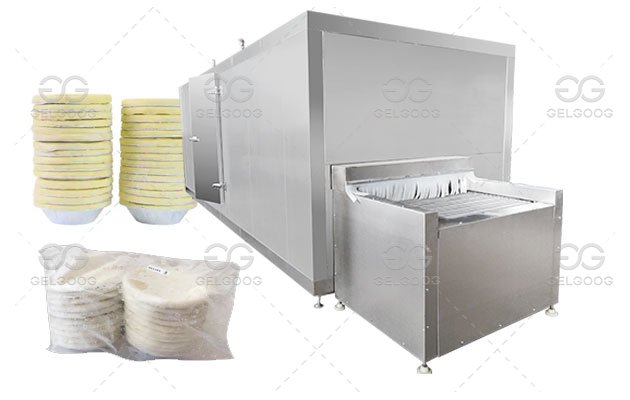

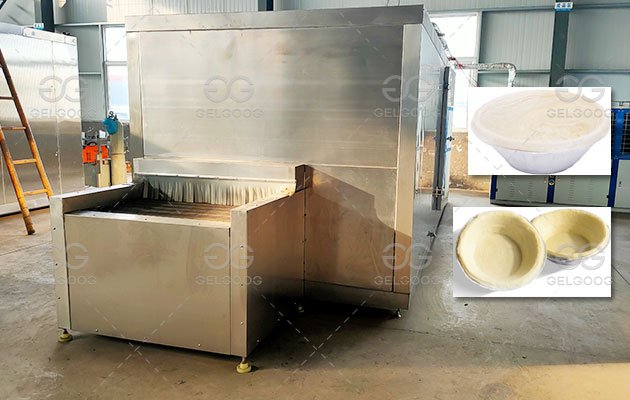

Freezing Machine for Egg Tart Shells

How to Freeze Egg Tart Shells

  1. The process begins by placing the freshly baked or partially baked egg tart shells onto the conveyor belt.
  2. As they pass through the freezing chamber, the cold air surrounding the tart shells rapidly reduces their temperature, causing them to freeze.
  3. The duration of the freezing process can vary depending on the desired level of freezing and the size and thickness of the shells.

As a professional pastry processing manufacturer, we provide a complete egg tart solution, from dough mixer, egg tart shell forming machine, arranging machine, iqf freezing machine, egg liquid injection machine, rotary oven and so on.
Technical Data
Models GGIQF-100 GGIQF-200 GGIQF-300 GGIQF-400
Capacity 100KG/H 200KG/H 300KG/H 400KG/H
Refrigeration Power 20KW 36KW 54KW 72KW
Size(L*W*H) 5500*3400*2900MM 5500*3400*2900MM 6000*4000*3700MM 8000*3700*3600MM
Installed Power 14KW 21KW 18KW 21KW
Feed Temperature +15℃ +15℃ +15℃ +15℃
Discharge Temperature -18℃ -18℃ -18℃ -18℃
Circulating Temeprature -35±2℃ -35±2℃ -35±2℃ -35±2℃
Freezing Time 8~20Min 8~20Min 8~20Min 8~20Min
Refrigerants Customized Customized Customized Customized
